Steel Plate
ASTM, AISI, GB, JIS, DIN, BS
ISO, RoHS, IBR
Blackface
Hot Rolled
Ship Plate, Boiler Plate, Container Plate

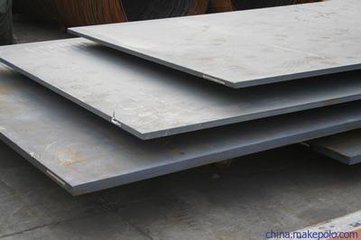

Wear resistant steel plate
| Name | abrasion resistant steel plate |
| Standard | ASTM ,GB , JIS , DIN |
| Application | Construction machinery, Engineering machinery ,Metallurgy machinery Loading machinery |
| Grade | NM360, NM400, NM450, NM500, NM550 |
| XAR400, XAR450, XAR500, XAR600, Dillidur400, Dillidur500 | |
| QUARD400, QUARD450, QUARD500 | |
| FORA400, FORA500, Creusabro4800, Creusabro8000 | |
| RAEX400, RAEX450,RAEX500 | |
JFE-EH360, HFE-EH400, JFE-EH500, WEL-HARD400, WELHARD500 | |
| Thickness | 2-300mm |
| Width | 1000-4020mm |
| Length | 8000mm or as request |
| Technique | hot rolled |
| Surface | Q+T |
1. Steel grade:
NM360 NM400 NM450 NM500 DOMEX 400 DOMEX450 HADOX 400 HADOX 450
Standard GB/T 24186-2009 and EN standard, Jis standards, ISO and ASTM standards
2. Thickness 2-300mm
3. Width 1000-4020mm
4. Length 1000-12000MM
5. Quality: Top quality, third party inspection is acceptable.
6. Packing: Standard export package or according per customer acquirement
7Wear resistant steel plate applications:
1) thermal power plant: Pulverizers cylinder liner, the fan impeller nest shell, precipitator inlet flue ash catheter, bucket wheel reclaimer liner separator connecting pipe, coal crusher liner, coal bucket and broken machine liner, burner burner, coal drop bucket and funnel liner, air preheater bracket retaining tile separator guide vanes. The parts not too high demands on the hardness and abrasion resistance of the wear plate, you can use made of wear-resistant steel NM360/400 thickness of 6-10mm.
2) coal field: Send trough and funnel lined hopper bush, fan blades, pusher machine base plate, cyclone dust collector, coke guide liner, ball mill liners, bit stabilizer, screw feeder bell and base Block, kneading machine bucket liner, ring feeder, dump trucks backplane. Harsh operating environment of the coal yard, steel plate there are certain requirements for corrosion resistance and abrasion resistance of the wear plate, recommend the use of material of NM400/450 thickness 8-26mm wear plate. Wear resistant steel plate
3) cement plant: Chute liners, the end of the bushing, cyclone dust collector, powder machine blades and vanes, fan blades and lined, recycling bucket lined screw conveyor bottom, pipeline components, frit cooling tray lining, trough liner. These parts also need to wear resistance, resistance to corrosion little better wear-resistant steel, and can be made of the thickness of the NM360/400 8-30mmd the wear plate.
Chemical composent
| Grade | C | Si | Mn | P | S | Cr | Mo | Ni | B |
| NM360 | ≤ 0.25 | ≤ 0.70 | ≤ 1.30 | ≤ 0.025 | ≤ 0.01 | ≤ 1.40 | ≤ 0.50 | ≤ 1.00 | ≤ 0.004 |
| NM400 | ≤ 0.25 | ≤ 0.70 | ≤ 1.60 | ≤ 0.025 | ≤ 0.01 | ≤ 1.40 | ≤ 0.50 | ≤ 1.00 | ≤ 0.004 |
| NM450 | ≤ 0.26 | ≤ 0.70 | ≤ 1.60 | ≤ 0.025 | ≤ 0.01 | ≤ 1.50 | ≤ 0.50 | ≤ 0.08 | ≤ 0.004 |
| NM500 | ≤ 0.38 | ≤ 0.70 | ≤ 1.70 | ≤ 0.02 | ≤ 0.01 | ≤ 1.20 | ≤ 0.65 | ≤ 1.00 | 0.005-0.006 |
| ade | performance | ||||||
| (mm) | Y.P (MPa) | T.S (MPa) | E.L A5(%) | H B | strength | ||
| °C | J/cm2 | ||||||
| NM400 | 3-40 | ≥1000 | ≥1250 | ≥10 | 360~430 | -20 | ≥30 |
| NM450 | 12-40 | ≥1250 | ≥1500 | ≥10 | 430~480 | -20 | ≥30 |
| NM500 | 40-80 | ≥1300 | ≥1700 | ≥10 | 480~520 | -20 | ≥30 |
4. Company Introductions:
Qingdao Hengcheng Steel Co.,Ltd is one of the greatest Steel Plate supplier in China, Mainly supply
Carbon Steel Plate/Alloy Steel Plate/Boiler and Pressure Vessel Steel Plate/Wear Resistant Steel Plate/Weather Resistant Steel Plate/Corten Steel Plate/Ship Plate/Clad Plate/Stainless Steel Plate etc
Hengcheng group have 2 set of HEC-G4*14mm NC cutting machine, 2sets of HEC-G6mm*14mm NC machine, 3sets of 600ton hydraulic press, 20set of KH-500 welding machine, we can cut the plate according to your request.
Cutting straightness m=0.5mm, verticality 100mm=3mm, bridge plate yearly output 3,000,000tons, boiler and pressure vessel steel palte output 2,000,000tons corten steel plate output 1,000,000tons, wear resistant steel palte output 1,500,000tons
5. Why choose us?
1).Advantages: We have two production line of PPGI and two lines for the galvanized steel coil, total yearly output is about 500000mt Also we have 56 professional salesperson from three international sales department, a group of technical engineers
And skillful quality control inspector.
2). Special technology support: We have two production line of pre-painted steel coil
And two lines for the galvanized steel coil, total yearly output is about 500000mt. In
Order to meet our customers new requirements, We also can manufacture the special
Products, such as Printed, Filmed, Pressed, Matte steel coil and the full hard G550
Galvanized steel and galvalume steel.
3). Conform the international quality standard: All products for export, according to the
International quality standard of Europe, Japan, Russia and America to produce.
About our factory
Q:Are you trading or manufacturer?
A:We are manufacture with exporting rights.
Q:How could you guarantee your quality?
A:The third inspection can be available such as ISO and 9001:2008
Q:Could you supply samples?
A:Yes,we can.
Q:What's your payment method?
A:T/T is the best payment, but also L/C is received.
Pls send your inquiry details in the below.
Click"send" now!
Contact me :Ashley zhu
Mobile:(+86)18813292013
